Utility Products

Print

Products

double triangular
hinged

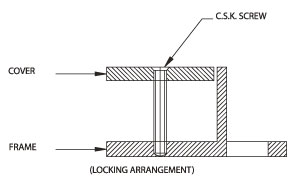

locking option
three point suspension
90⁰ blocking

kitemarked
hinged
closed keyways
anti-skid finishes
E600 & F900 available
non-rocking
bespoke sizes - made to order

Class	Clear Opening A x B (mm)	Over Base C x D (mm)	Total Depth E (mm)	Product Ref.
D 400	600 x 600	750 x 750	100	EN-D715
D 400	750 x 450	930 x 630	100	EN-D438
D 400	750 x 600	930 x 780	100	EN-D933A
E 600	600 x 600	750 x 750	150	EN-D933
D 400	900 x 600	1060 x 804	100	EN-D849
D 400	900 x 750	1080 x 930	100	EN-D933B
D 400	900 x 900	1080 x 1080	100	EN-D933C
D 400	900 x 750	1060 x 910	105	EN-D423
E 600	900 x 750	1060 x 910	105	EN-D423E

Products

multi double triangular
hinged
locking option
three point suspension
90⁰ blocking

kitemarked
hinged
closed keyways
anti-skid finishes
E600 & F900 available
non-rocking

Class	Clear opening A x B (mm)	Over Base C x D (mm)	Totla Depth E (mm)	Product Ref.
D 400	1200 x 675	1380 x 855	150	EN-D932
D 400	1200 x 750	1380 x 930	100	EN-D932A
D 400	1200 x 900	1380 x 1080	100	EN-D932C
D 400	1200 x 1200	1380 x 1380	100	EN-D932D
D 400	1310 x 600	1490 x 780	100	EN-D932B
D 400	1350 x 1350	1530 x 1530	100	EN-D932E
D 400	1220 x 675	1400 x 855	100	EN-D932F
E 600	1220 x 675	1400 x 855	150	EN-D932G
E 600	1830 x 675	2010 x 855	150	EN-D932H
E600/D400	1000 x 1000	1080 x 1080	150	EN-D932I
E600/D400	1350 x 1350	1530 x 1530	150	EN-D932J
E600/D400	1500 x 1500	1680 x 1680	150	EN-D932K
E600/D400	1500 X 900	1680 x 1080	150	EN-D932L

Products

solid top
Steel frame
non-rocking
manufactured under and tested to BS 5834

Class	Clear opening A x B (mm)	Over Base C x D (mm)	Totla Depth E (mm)	Product Ref.
B 125	260 x 385	350 x 474	45	EN-D6418
B 125	445 x 915	534 x 1002	45	EN-D6419
B 125	975 x 915	1070 x 1010	45	EN-D6420
